| HARDWARE |
| Mobile |
5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
| CPU |
Single core ARM Cortex A7, 1,5 GHz |
| Flash Storage |
512 MB |
| RAM |
256 MB |
| Powering option |
4-pin power socket, 9-30 VDC |
| SIM |
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |

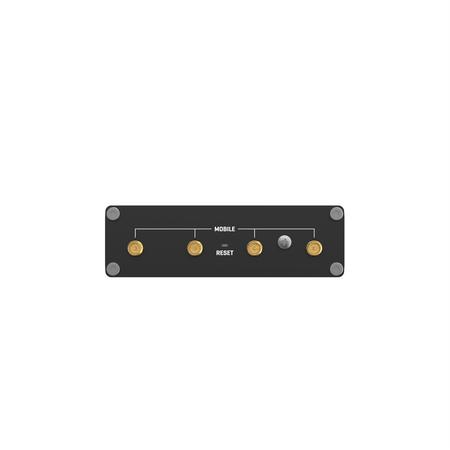

| Antenna connectors |
4 x SMA for Mobile |
| Ethernet |
1x 10/100/1000 Mbps Ethernet port |
| Inputs/Outputs |
On 4-pin socket: 1 x Digital input, 1 x Digital open collector output |
| Other |
1 x Micro USB slave, 1 x Grounding screw |

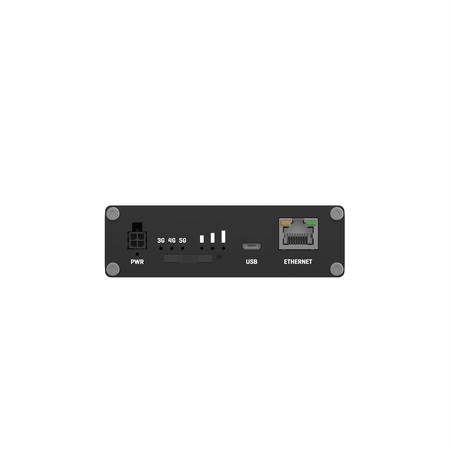

| Status LEDs |
3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| Operating temperature |
-40° C to 75° C |
| Housing |
Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement |
| Dimensions (W x H x D) |
100 x 30 x 93,4 mm |
| Weight |
241g |
| SOFTWARE |
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Mobile features |
Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits |
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Network features |
Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring |
| Monitoring and Management |
WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| VPN and tunneling |
OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier |
| Cloud solutions |
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Security |
Authentication, Pre-configured firewall rules, Attack prevention, Mobile quota control, WEB filter, Access control |
