| HARDWARE |
| CPU |
Mediatek, 580 Mhz, MIPS 24KEc |
| RAM |
128MB, DDR2 |
| FLASH storage |
16MB serial NOR flash |
| Powering options |

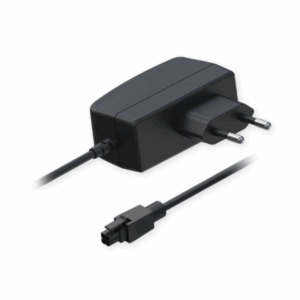

4-pin industrial DC power socket, 9 – 30 VDC |
| Ethernet |
5 x RJ45 ports, 10/100Mbps |
| Inputs/Outputs |
2 x Digital Input, 2 x Digital Output on 4-pin power connector |
| Other |
1 x USB host |
| Status LEDs |
1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED |
| Operating temperature |
-40 °C to 75 °C |
| Housing |
Aluminium housing |
| Dimensions (W x H x D) |
100 x 30 x 85 mm |
| Weight |
233 g |
| SOFTWARE |
| Operating system |
RutOS (OpenWrt based Linux OS) |
| Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
| Firewall |
Port forward, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI |
| VPN and tunneling |
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management |
WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS |
| Cloud solutions |
RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity |
| Services |
DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba) |
| Administration |
Update FW from file, check FW on server, configuration profiles, configuration backup |
